VSTORE – Vertical Storage System
Our vertical Automated storage and retrieval systems with a small footprint, high density,
VStore™ (Vertical Lift Module) makes maximum use of floor and vertical space
and offers
cost-effective, efficient, quick, and ergonomic solutions to meet your storage and retrieval
needs.
VStore is a Vertical Lift Module type ASRS completely in-house developed and completely
indigenous,
manufactured in our facility in Coimbatore.

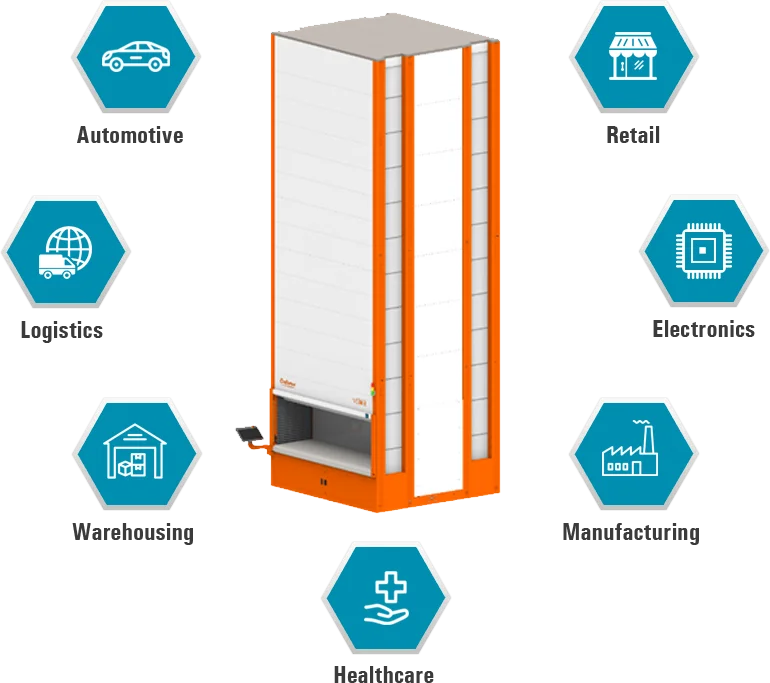

The possibilities of VStore are unlimited. This type of Automated storage and retrieval system
can
be deployed in various industries such as automotive, electronics, manufacturing, healthcare,
retail, logistics, and warehousing. Wherever items need to be stored with effective usage of
space
and retrieved quickly, VStore provides the optimum solution.
Vstore Software Application
VStore software is exclusively developed by CAL to set up a communication platform for the user to communicate with the machine.
VStore software has an ability to integrate with different types of ERP systems that the customer uses.
VStore application predominantly runs on industrial computers and communication between the application and the VStore hardware is well established to enable the user for a fine operation of the machine.
VStore software gives the user information about the parts stored, inventory, space available in the machine, and has features to view call history, schedule fetching, and various access controls.
Every screen of the software is designed with paramount care to make a friendly atmosphere for the user to communicate with the machine.
Fingerprint
By pressing this icon on the user login screen, the user can login to the software with the help of their registered fingerprints.

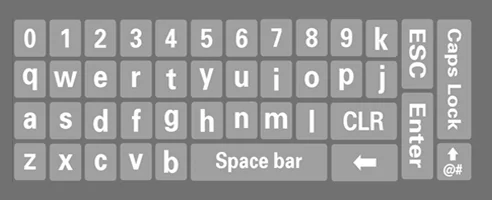

Touch Control Keypad
User interaction with the VStore machine through the VStore software is done with the help of the following keypad interfaced with the software.

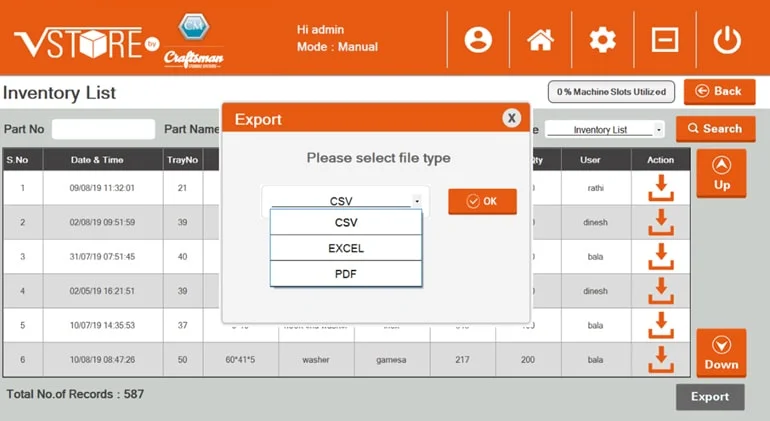

Export Data
All reports can be exported in three different formats: CSV, Excel, and PDF.
Technical Data
| TECHNICAL DATA | ||||||
|---|---|---|---|---|---|---|
| UNIT & TRAY DIMENSIONS | ||||||
| S.No | Tray Width in mm | Tray depth in mm | Load Capacity | Unit Width in mm A | Unit Width in mm B | |
| Load Capacity kg (Regular) | Load Capacity kg (Heavy) | |||||
| 1 | 1340 | 500 | - | 1670 | ||
| 2 | 1840 | 2170 | ||||
| 3 | 2440 | 865 | 370 | 500 | 2770 | 3077 |
| 4 | 2840 | 260 | 465 | 3170 | ||
| 5 | 3040 | 210 | 3370 | |||
VStore 1Ton Technical data
| S.No | Tray Width in mm | Load Capacity | Unit Width in mm A | Unit Depth in mm B | |
|---|---|---|---|---|---|
| XXL tray (Depth 825 mm) | |||||
| 1 | 1340 | 1000 | 1710 | 3058 | |
| 2 | 1840 | 1000 | 2210 | ||
| 3 | 2440 | 900 | 2810 | ||
| 4 | 2840 | 850 | 3210 | ||
| 5 | 3040 | 800 | 3410 | ||
| 6 | 3250 | - | 3620 | ||
| 7 | 3640 | 750 | 4010 | ||

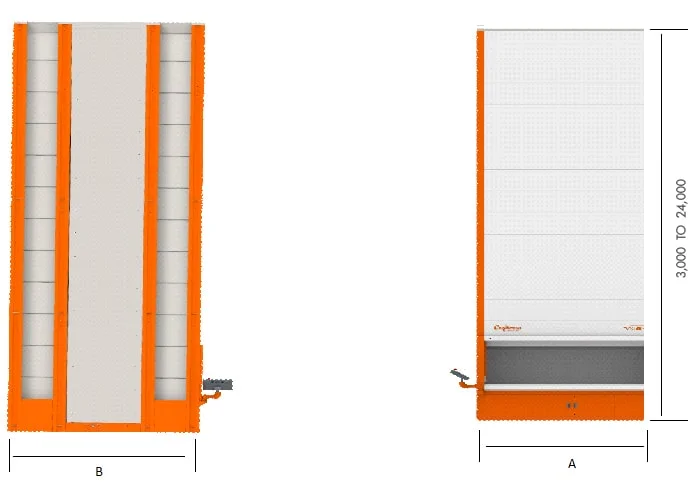

Unit Height

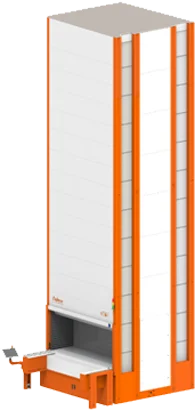

Automatic Tray Extraction
- Reduced risk of falling loads
- Light barrier for safe hand operation
- Overload detection system
- Automatic height sensing
- Certified operator touch panel
- Standard single access
- Optional Multiple Access up to three per machine
- Optional customized dividers and partitions
- Dual tray exchange option to reduce retrieval time
- VStore
- Normal Shelves
- Quick storage and retrieval
- Up to 80% faster retrieval times
- Intelligent height and weight sensing
- Reinforced toothed belt drive for quiet operation
- Inverter-controlled motors for low power consumption
