VSTORE HD – Heavy Duty

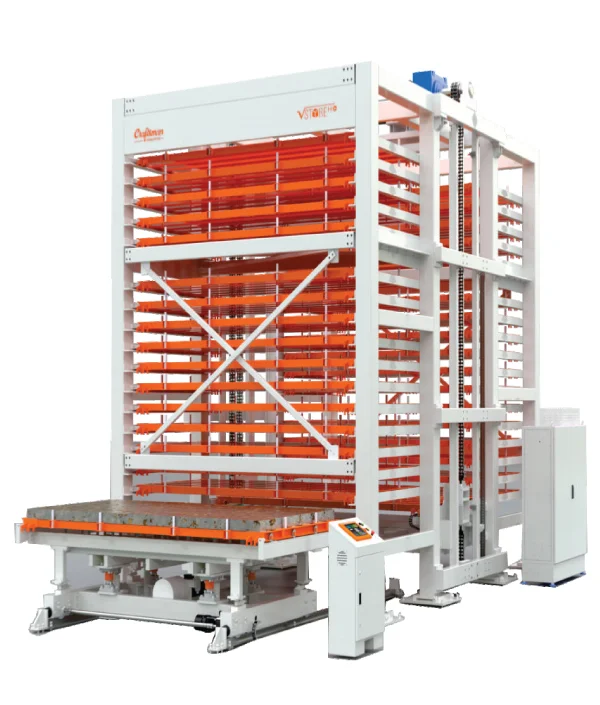

V-Store HD Automated Vertical Storage System is Heavy Duty storage solution for organizing,
storing ,displaying and accessing heavy parts efficiently and ergonomically. V-Store
HD is a
fully automated Vertical Storage System that consists of the lift that positions the pallet
vertically in fixed storage locations and the extractor to position the pallet on the either
side of the storage.
VStore HD consist of transfer trolley which will deliver and receive the parts stored in pallet
from the pick up and delivery station.

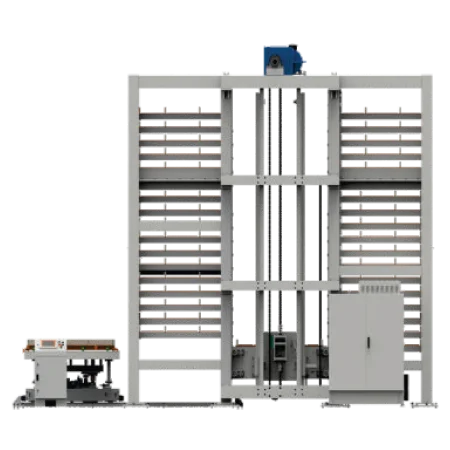

V-STORE HD T – TOWER

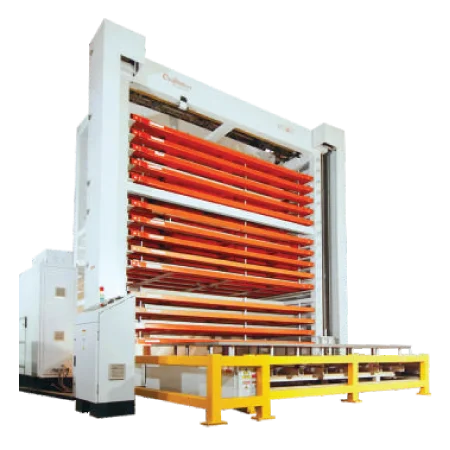

V-STORE HD C – TOWER
Areas Catered

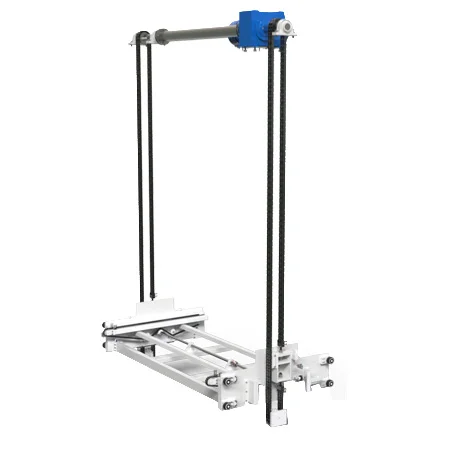

Lifting Extractor
Maximum Pick-up Speed - 25 m/min
Maximum Lifting Speed - 25 m/min
Automatic and Faster access to various pallets
Organized quick storage and retrieval of work materials
High efficient chain drive for smooth lifting
Pallet Transfer Trolley
Transverse Speed - 25m/min
Arrow Icon Accessible Pallet Size - 3050 x 1525mm
Maximum Loading weight per pallet - 3000 kg
Increased safety systems to prevent unauthorized entry in access area
Arrow Icon Socket Pins are available for pallets to safeguard the goods
Transfer cart with weighting device for overload protection
Lifting Extractor
Storage control with Pre - Selection of Pallet and approval key

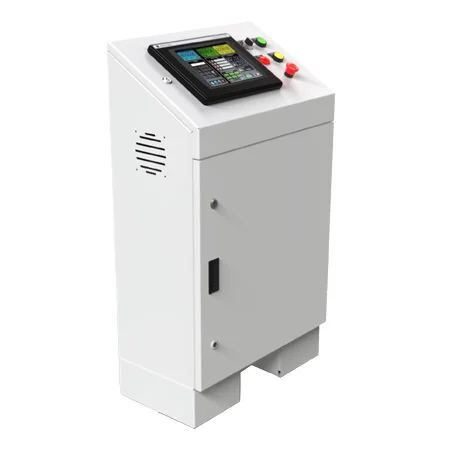

Elegantly designed operating panel
A User-friendly touch panel
Material and Inventory control (Based on Thickness, Weight, Heat no.)
Material Inventory status check can be done
Safety pins are in place to safeguard the goods
Electronic Overload protection available
Fenced Pick-up Delivery station to protect unauthorized entry
Technical Specification
| System | V Store T - Tower | V Store C - Tower |
|---|---|---|
| System Height [m] | 5 - 12 (Steps of 0.5m) | 4.5 - 8 (Steps of 0.5m) |
| Pallet Width [mm] | 2500/3050 | 2500/3050 |
| Pallet Depth [mm] | 1250/1525 | 1250/1525 |
| Max. Loading height in each pallet location [mm] | 90 - 200 (Variable as per SKU) | 90/135 |
| Weight capacity per pallet location [Kg] | 3000 | 3000 |
| Max. Lifting speed [m/min] | 25 | 6 |
| Max. Storage and Retrieval speed [m/min] | 25 | 20 |
| Transverse Speed of Trolley [m/min] | 25 | - |
| No. of pallet locations | <75 | <30 |
| Foot Print of the Machine [mm] | 9000 x 5750 | 6000 x 5750 |
| Automatic Control | Standard | Standard |
| Material Stock Administration | Optional | Optional |
| ERP Link | Optional | Optional |
- Reduced risk of falling loads
- Light barrier for safe hand operation
- Overload detection system
- Automatic height sensing
- Certified operator touch panel
- Standard single access
- Optional Multiple Access up to three per machine
- Optional customized dividers and partitions
- Dual tray exchange option to reduce retrieval time
- VStore
- Normal Shelves
- Quick storage and retrieval
- Up to 80% faster retrieval times
- Intelligent height and weight sensing
- Reinforced toothed belt drive for quiet operation
- Inverter-controlled motors for low power consumption
